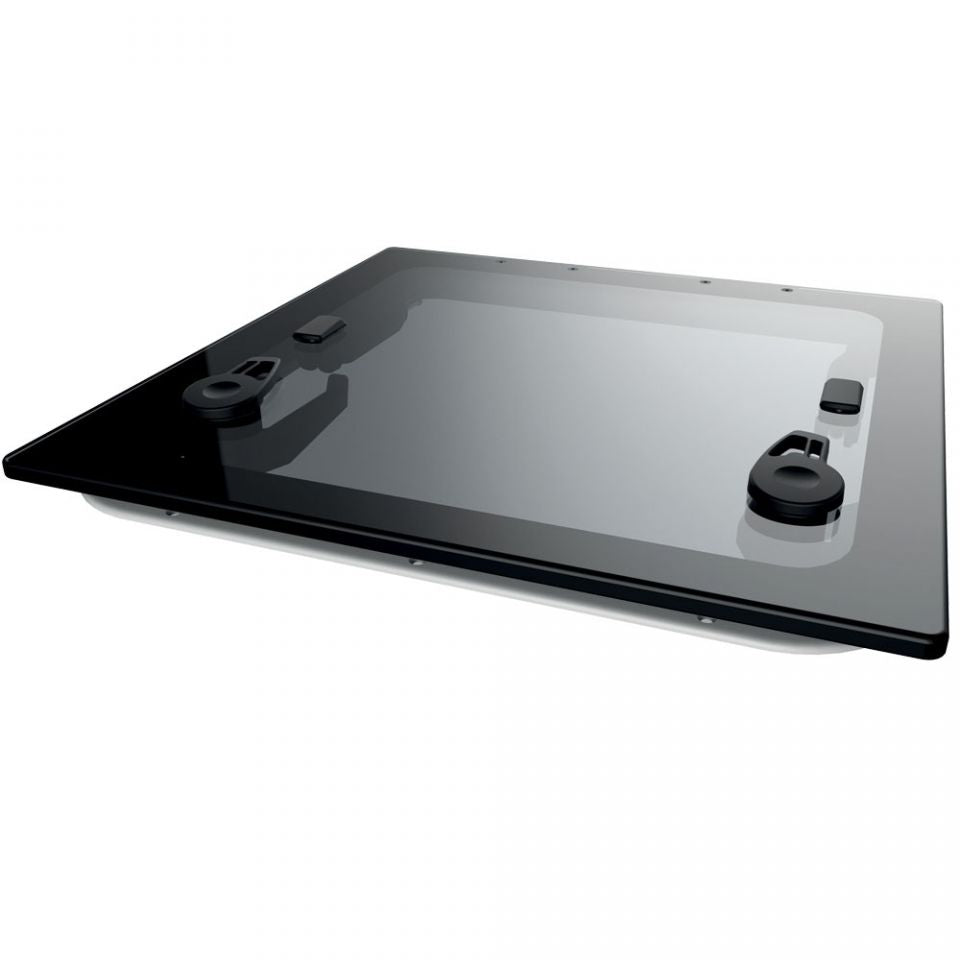

Lewmar Flush Hatch 2G Size 60 Grey Acrylic

$89.96

7797 in stock

Lewmar Flush Hatch 2G Size 60 Grey Acrylic

Mounting Instructions

Fit to a flat surface with a maximum tolerance of +/- 1mm. Fastening size at hinge section use (M6/ 1/4″). Fastening size for lower frame use 5mm CSK screw No. 10 UNC 2 BA. All sizes suitable for CE Area 2 (Deck, Coachroof, Cockpit and Transom).

Deck Design

The flush hatch requires a special recess to be designed into the deck to receive the hatch. If the recess is not the correct shape the hatch will not be flush and may not open or close.

Opening

The hatch is only supplied with Stay(s), Friction Lever, or Friction Hinges.

Specifications

Support System Lower Frame Flange (in) Acrylic Window Thickness (in)
2 x stay 9/16 1/2

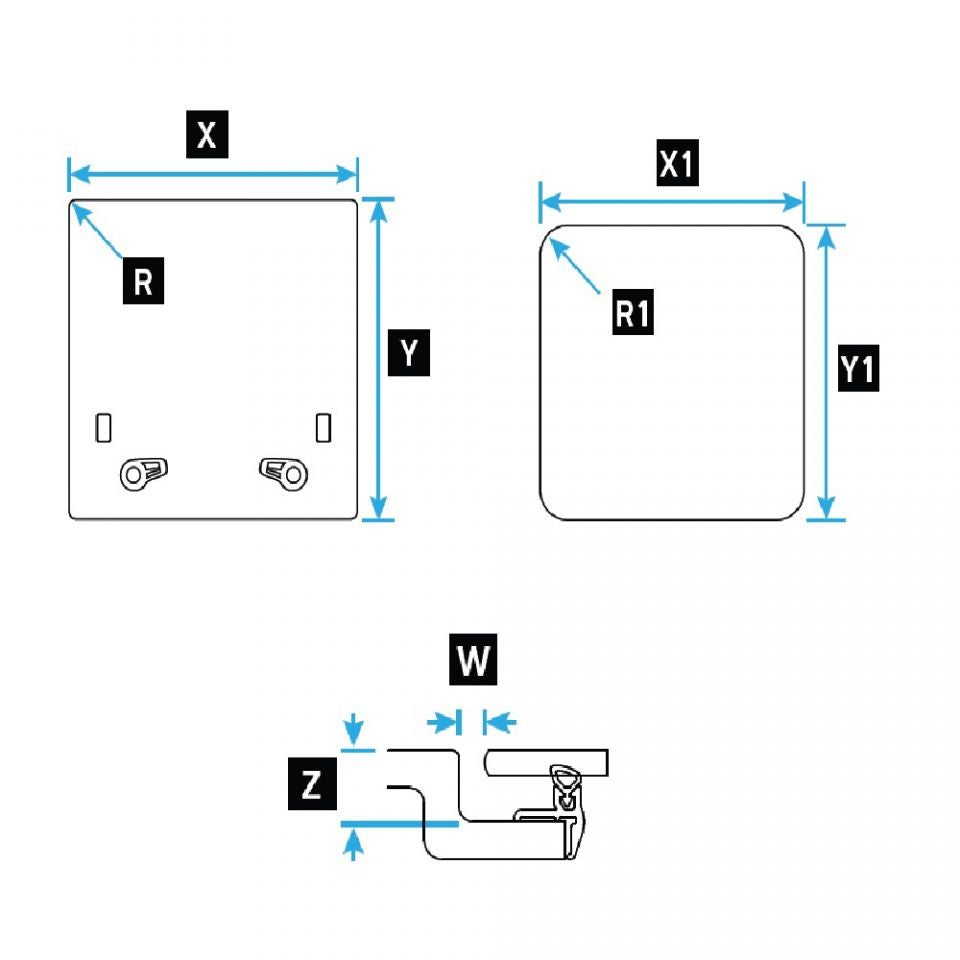

Length X (in) Width Y (in) Height Z (in) Raddii R (in) Cut-Out Length X1 (in) Cut-Out Length Y1 (in) Cut-Out Length R1 (in)
22 11/16 18 3/16 1 1/4 3/8 19 15/16 15 7/16 1 11/16
